Augmentations
Augmentations randomly transform training images during each training epoch to increase dataset diversity without additional data collection. This improves model generalization and robustness against real-world variation.
Augmentations are divided into two groups within the processing pipeline:
- Static Augmentations — applied first in a fixed order
- Dynamic Augmentations — user-orderable; can be applied multiple times
Image Composition
Image Composition generates synthetic training images by randomly placing object cutouts onto background images. It is configured as a Begin augmentation and is only available for object detection projects.
Composite images are generated during training by randomly placing objects and/or background images based on per-label settings.
Global parameters:
| Parameter | Description |
|---|---|
| Min Rotation | Minimum rotation angle for placed objects (default: −10°) |
| Max Rotation | Maximum rotation angle for placed objects (default: 10°) |
| Allow Overlap | Whether placed objects may overlap each other |
| Max Overlap % | Maximum allowed overlap between objects (0–1, default: 0.5) |
| Min Objects per Image | Minimum number of objects placed per generated image (default: 5) |
| Max Objects per Image | Maximum number of objects placed per generated image (default: 20) |
Per-label settings:
| Parameter | Description |
|---|---|
| Scale (cm) | Size range objects can appear in |
| Probability | How often this label appears in generated images (0% = never, 100% = always) |
| Is Background | Whether to use instances of this label as background images (mutually exclusive with object placement) |
Geometric Augmentations
Mosaic
Combines 4 images (the current image + 3 random images from the dataset) into a 2×2 grid, then randomly crops a region matching the original image size. This augmentation is only used for Object Detection.
This technique helps the model:
- Recognize objects in different contexts and backgrounds
- Handle partial object visibility at image edges
- Improve robustness against varying object compositions
Note: This augmentation requires multiple images in the dataset to be effective. During training, 3 random images are selected from the dataset for each mosaic.

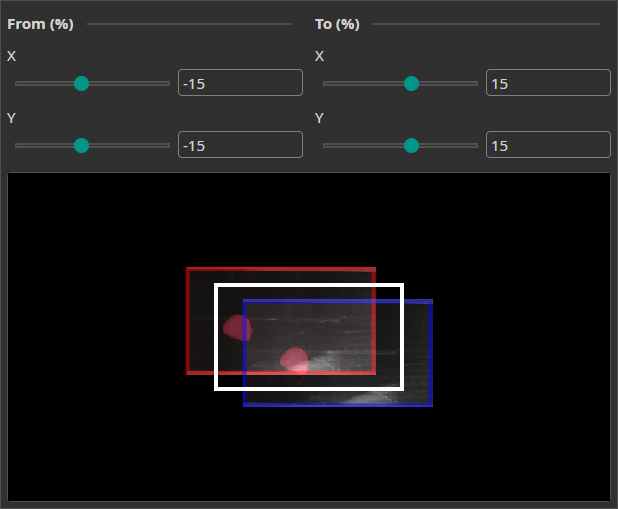

Move
| Parameter | Description |
|---|---|
| X Range | Maximum horizontal shift (pixels) |
| Y Range | Maximum vertical shift (pixels) |
Randomly translates the image along X and Y axes. Improves robustness to positional variability in the camera field of view.

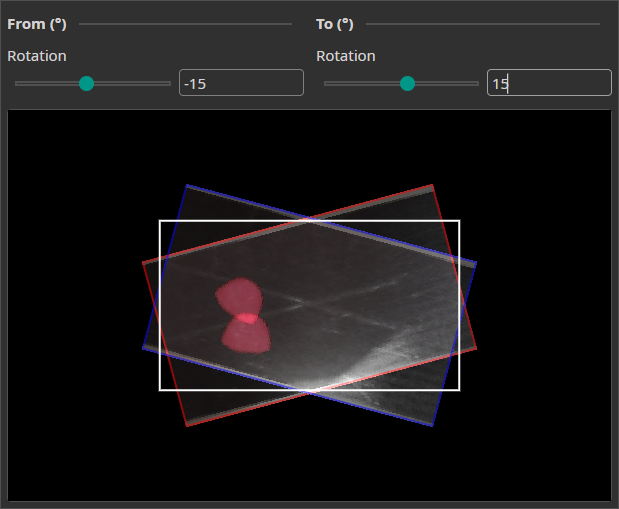

Rotate
| Parameter | Description |
|---|---|
| Angle Range | Maximum rotation in degrees |
Randomly rotates images within the specified range. Enables recognition of objects at arbitrary orientations.

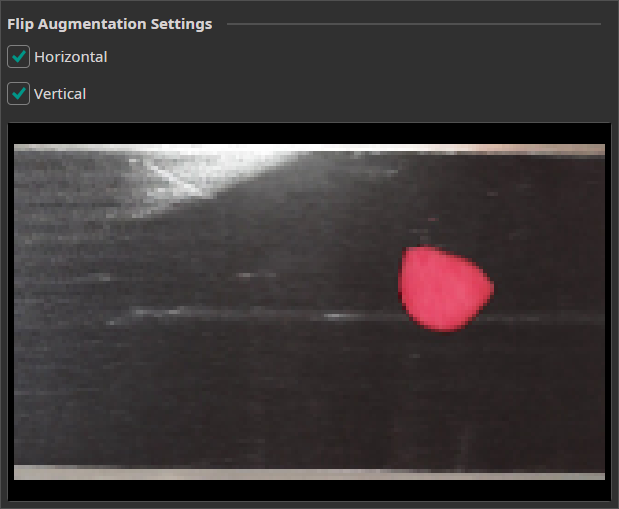

Flip
| Parameter | Description |
|---|---|
| Horizontal | Enable random horizontal mirroring |
| Vertical | Enable random vertical mirroring |
Randomly mirrors images along one or both axes.

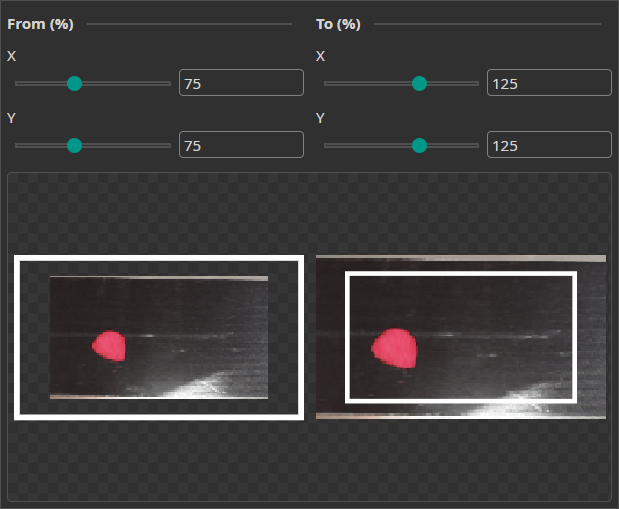

Resize
| Parameter | Description |
|---|---|
| Scale Range | Min/max scale factor |
Randomly scales images up or down. Improves robustness to varying object sizes and camera distances.
Photometric Augmentations
Color
| Parameter | Description |
|---|---|
| Brightness | Random lightness variation |
| Contrast | Random contrast variation |
| Saturation | Random color intensity variation |
| Hue | Random color shift |
| Gamma | Random non-linear brightness curve |
Simulates varying lighting conditions, color temperature shifts, and exposure differences.

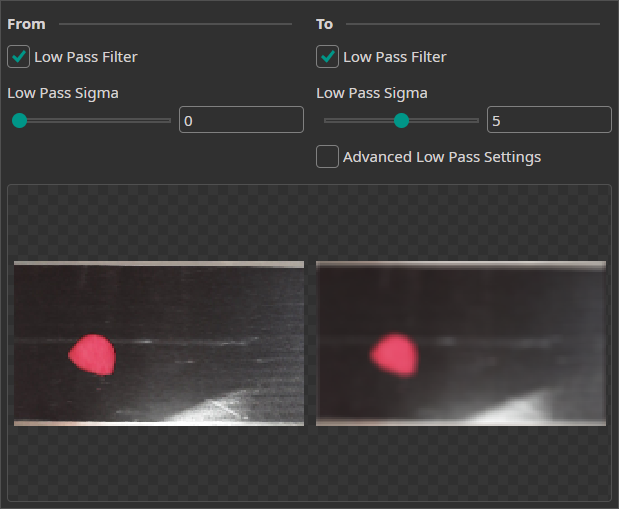

Frequency (Blur)
| Parameter | Description |
|---|---|
| Blur Range | Maximum blur kernel size |
Applies random low-pass filtering to simulate out-of-focus conditions.

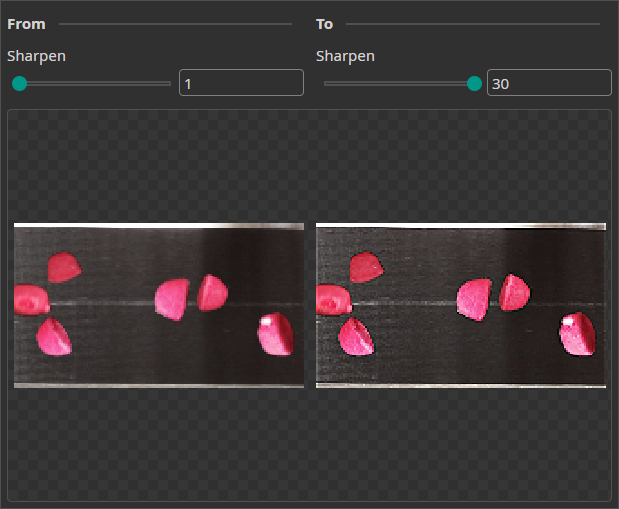

Sharpen
| Parameter | Description |
|---|---|
| Sharpen Range | Maximum sharpening intensity |
Randomly increases edge contrast. Complements the Frequency augmentation for focus variation.

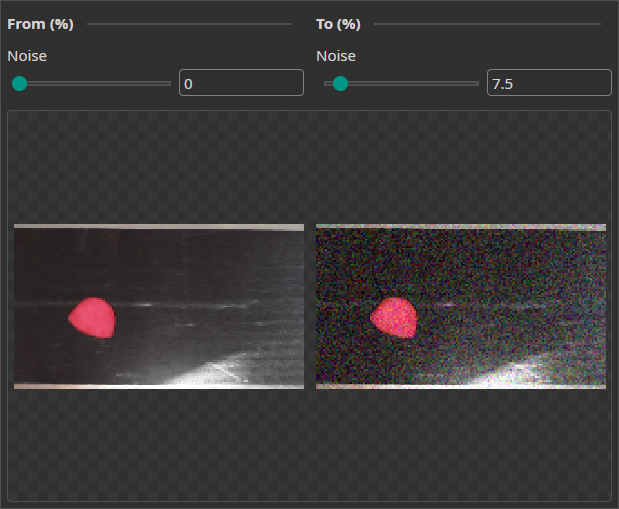

Noise
| Parameter | Description |
|---|---|
| Noise Range | Maximum noise intensity |
Adds random pixel noise to simulate sensor noise, compression artifacts, and other real-world image imperfections.
